10,000 gallon carbon steel mix tank
[10KVCSMixA01]

  • 10KVCSmixA01
  • 10KVCSmixA02
  • 10KVCSmixA03
  • 10KVCSmixA04
  • 10KVCSmixA05
  • 10KVCSmixA06
  • 10KVCSmixA07
Click image to enlarge
Quantity:
Ask a Question

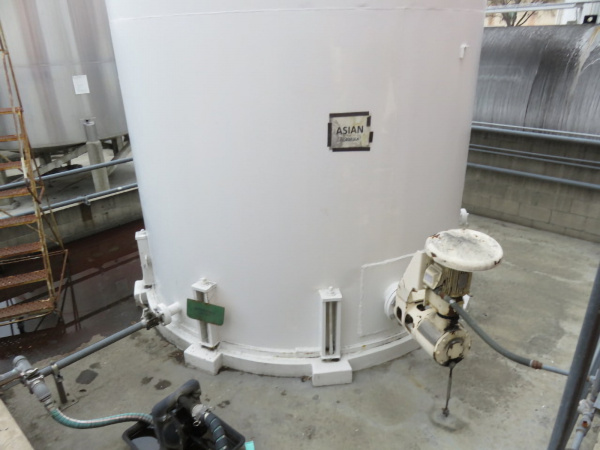

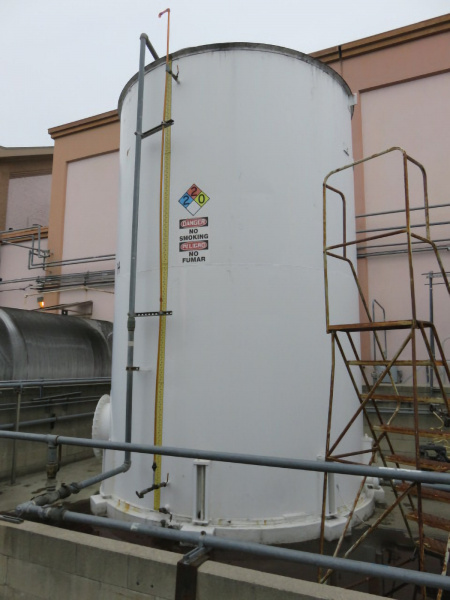

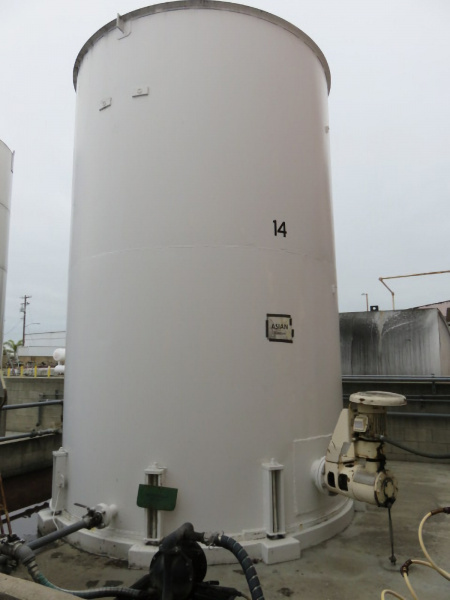

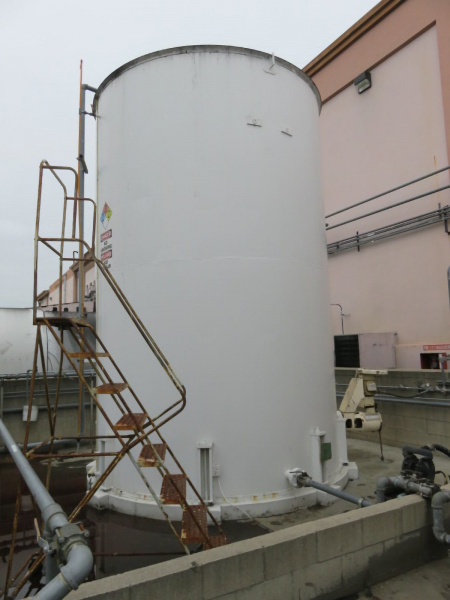

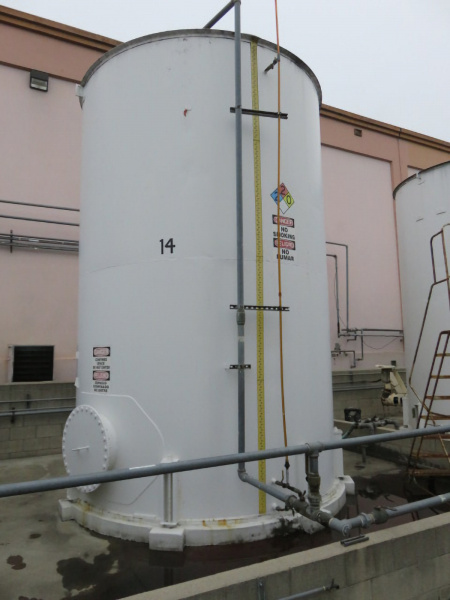

  • 10,000-gallon vertical carbon steel mix tank measures 10’-6” diameter X 16’-0” high on the straight side with a flat bottom & top.

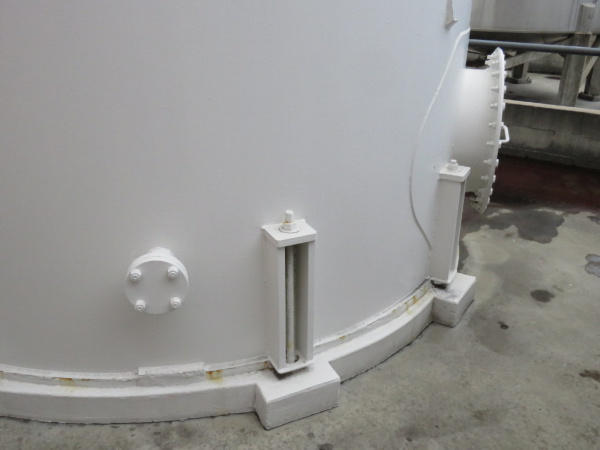

  • Tank has a 24” side man way with a bolted-on cover; A 8”-150 LB flanged fitting for the side entering mixer; 8 seismic anchor chairs.
  • Top of tank has one 8” 150 LB flange, two 3” 150 LB flanges, two 2” 150 LB flanges, two 1” threaded fittings, is supported with a 2” X 2” angle iron ring and has two lifting eyes.

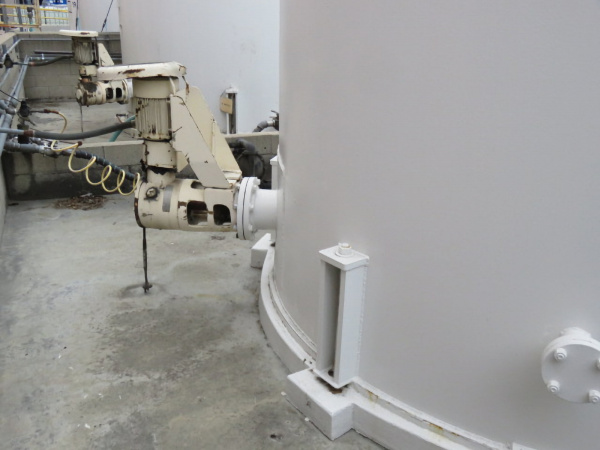

  • LIGHTNIN mixer has a 5 HP 230/460 volt 3 PH 1725 RPM electric motor that is reduced to 280 RPM on the stainless steel output mixer shaft.
  • One set of 3 propeller type mixing blades.
  • Tank ships from Fontana, CA.
  • A detailed drawing and delivery quotes to your location are available upon request.

Specifications
  • Condition: Used
  • Gallons: 10,000
  • Material: Carbon steel
