10,000 gallon sanitary stainless steel cone bottom tank
[10KSSCB01]

Click image to enlarge

Quantity:

Ask a Question

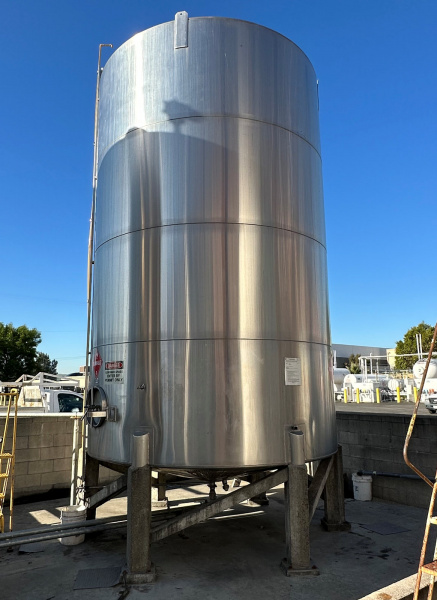

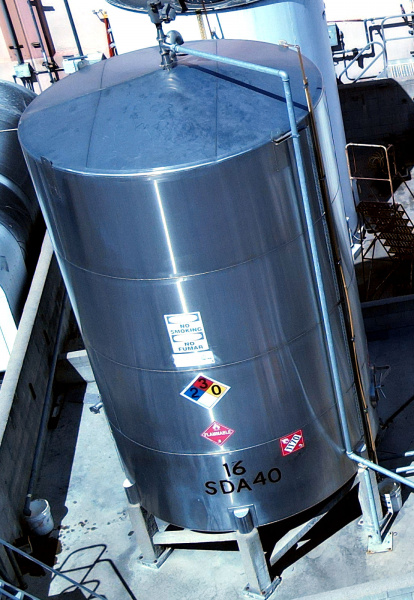

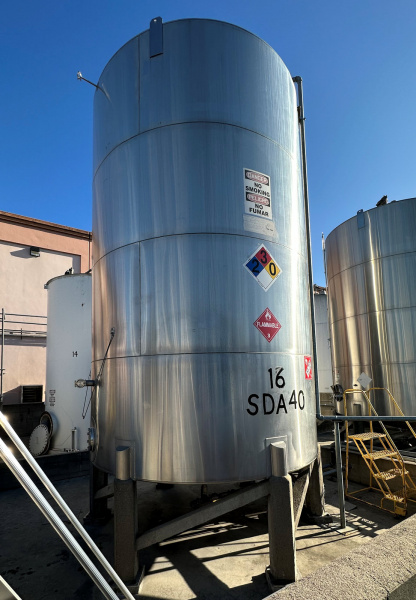

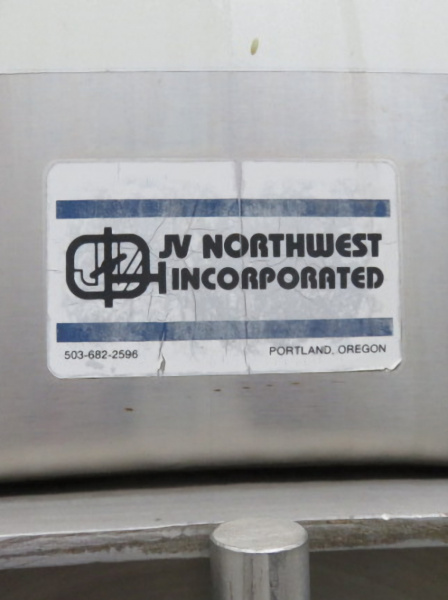

10,000-gallon (10,400) gallon vertical 304 polished sanitary stainless steel cone bottom storage tank manufactured by JV Northwest in 1992 has a MFG’s Serial No:11403.

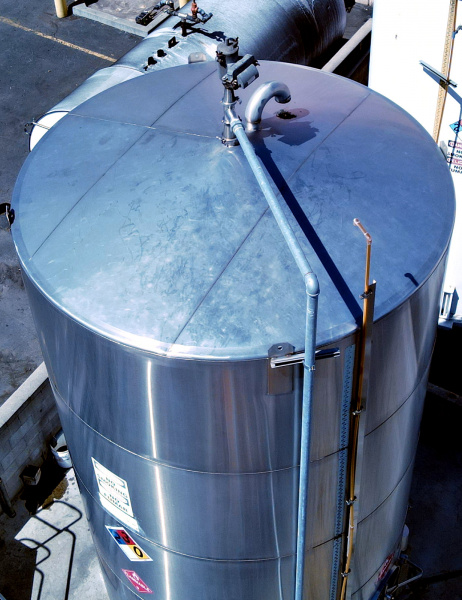

Tank measures 10’-3” in diameter X 16’-0” high on the straight side with 16” or 15˚ deep conical bottom & top (20’-10” OAH).
All internal welds have been ground smooth & polished.

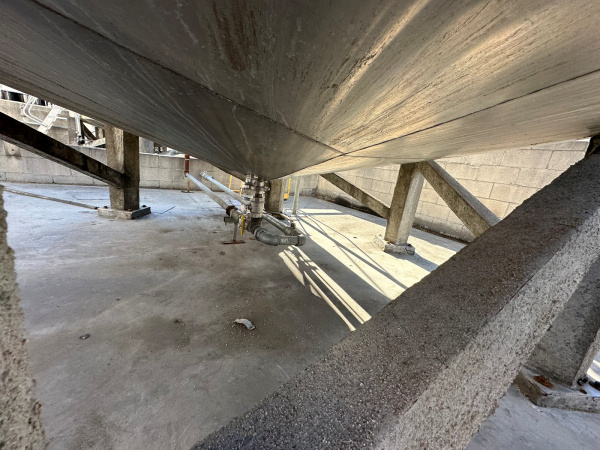

Bottom cone has a 3” sanitary drain fitting and is elevated 12” from grade to bottom of fitting.

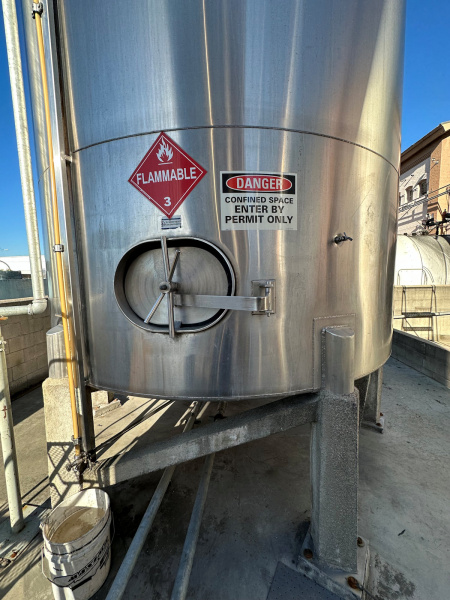

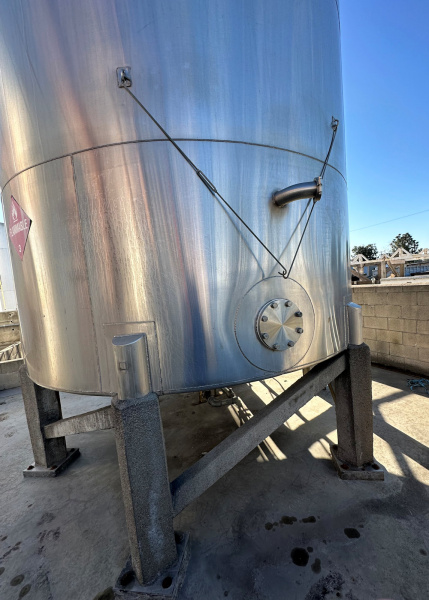

There is a 16” X 22” side man way with a swing out cover and a 6”-150 LB mixer support flange on side.

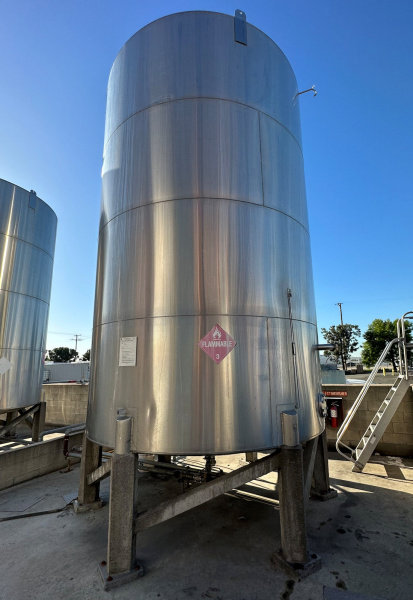

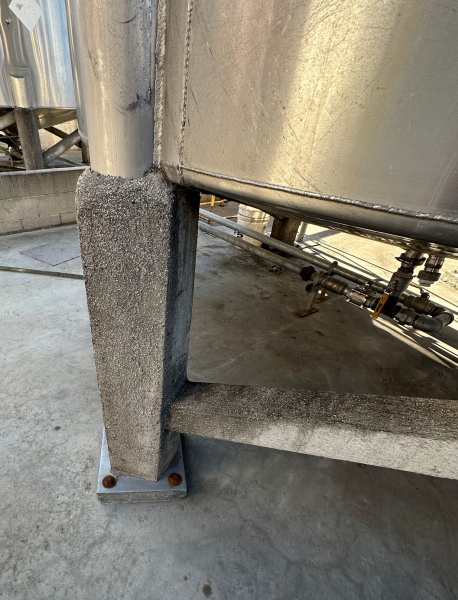

Tank is supported with six 6” stainless steel pipe legs that are encased in concrete with adjustable base plates and has assorted fittings for plumbing.
A new side entering mixer can be designed and provided to meet customers mixing specifications.
Tank was last used to store alcohol and will be professionally cleaned and empty prior to shipping.
Tank availability is late April, 2023.
A detailed shop drawing and delivery quotes to your location are available upon request.

Specifications

Condition: Used
Gallons: 10,000
Material: Stainless steel
