10,000 gallon steel fuel tank and mixer
[10KVCSUL142B01]

Click image to enlarge

Quantity:

Ask a Question

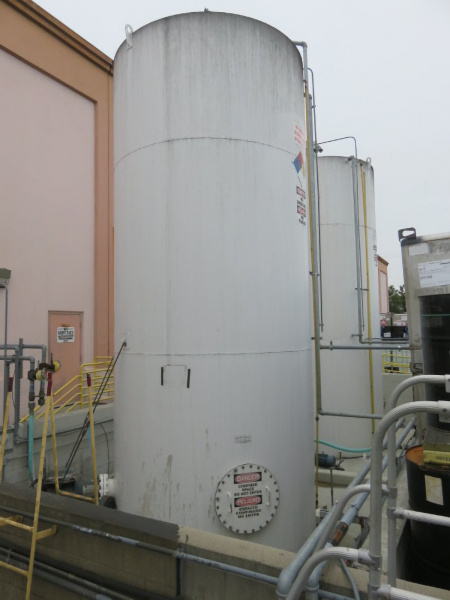

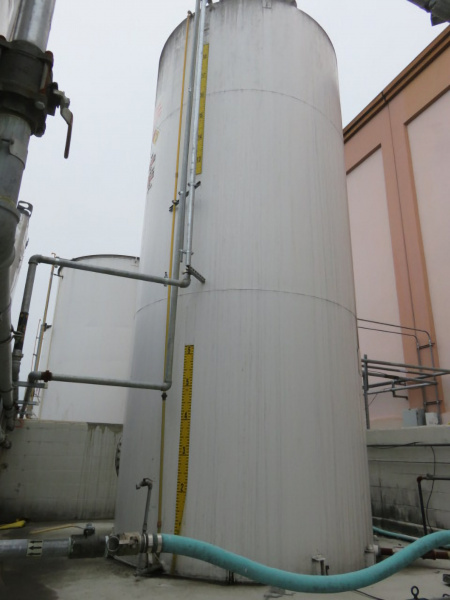

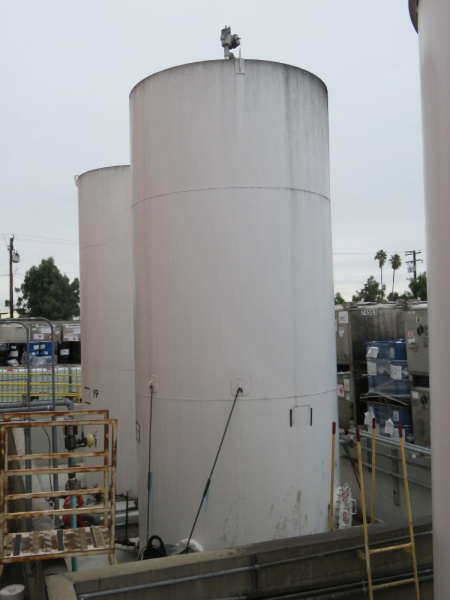

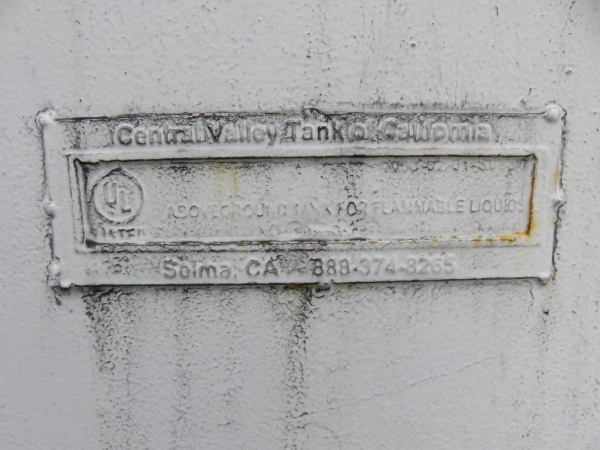

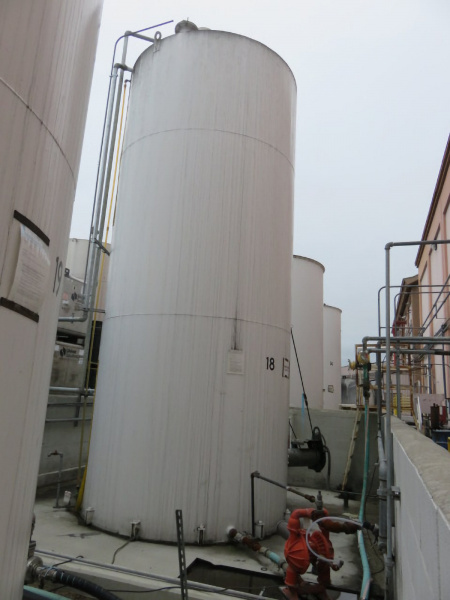

10,000-gallon vertical carbon steel mix tank manufactured by Central Valley Tank is UL Listed for flammable & combustible liquids.
Tank measures 9’-6” diameter X 20’-0” high on the straight side with a 12” conical top.

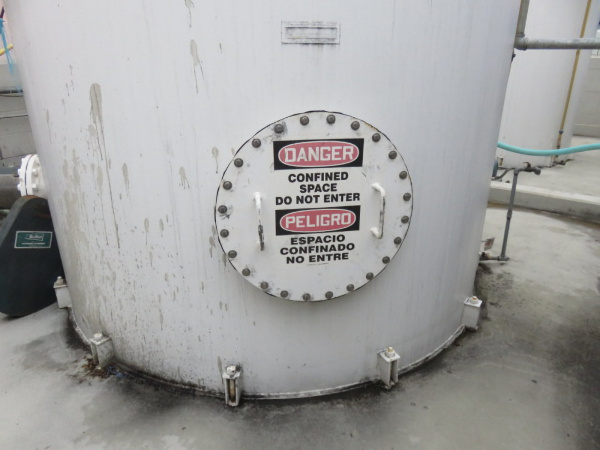

Tank has a flat bottom, a 24” side man way with a bolted on cover; A 10”-150 LB flanged fitting for the MixMor side entering mixer (needs new motor and is not included); 12 seismic anchor chairs.

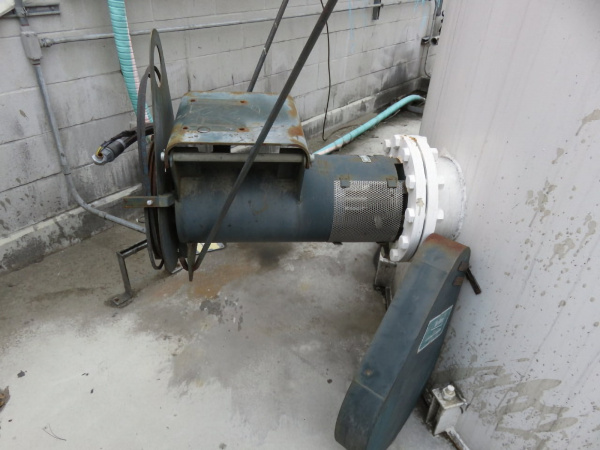

This MixMor mixer was designed with a 5 HP 3 PH 230/460 volt 1750 RPM XP motor that is reduced down to 420 RPM on the 2” stainless steel output shaft that has 18” diameter 3 bladed hydrofoil stainless steel mixing blades.
The top of this tank has three 8” 150 LB flanges.
Tank is available in May, will be certified cleaned & empty and currently ships from Chino, CA.
A detailed drawing and delivery quotes to your location are available upon request.

Specifications

Condition: Used
Gallons: 10,000
Material: Carbon steel
