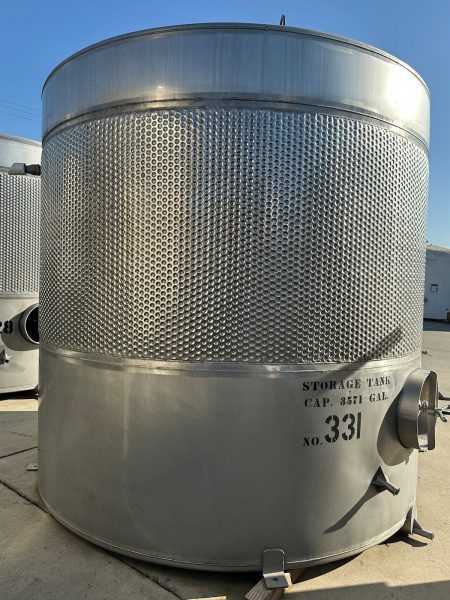

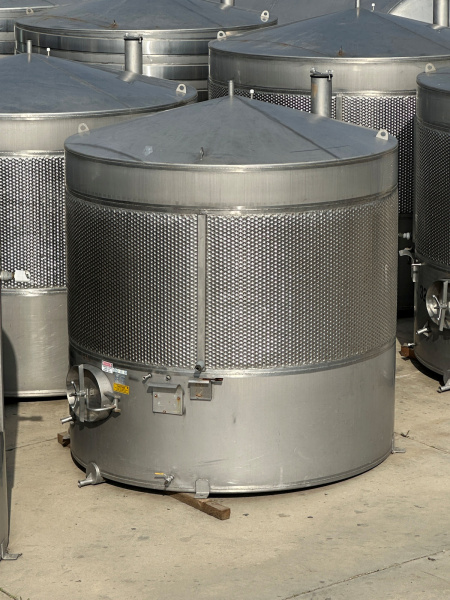

3,500 gallon dimple jacketed stainless steel tank
[5KS61003]

•
•
•
•
•
•
•
•
•
•

Click image to enlarge

Quantity:

Add to Quote Ask a Question

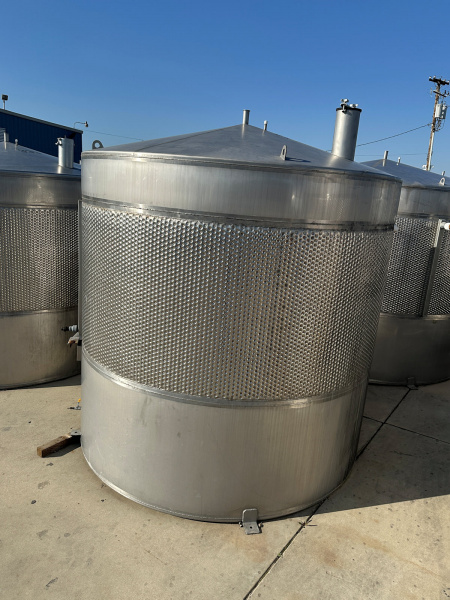

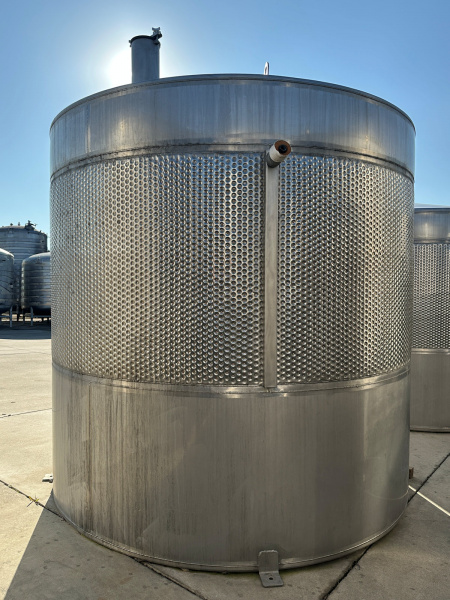

• 3,500 gallon stainless steel jacketed tank.
• Measures 8’-6” in diameter X 94” high on the straight side with a 12” high conical top.
• Top of tank has one 1” threaded nipple; One 6” X 10” high stainless riser with a cap; One 3” top center sanitary vent pipe and four lifting eyes.
• There is a 16” X 20” side man way, one 2” sanitary bottom drain fitting, one 2” sanitary outlet 24” up from bottom of tank and two 1” threaded nipples near the man way.
• There are seven continuous rings of 4” stainless steel channel iron jacketing.

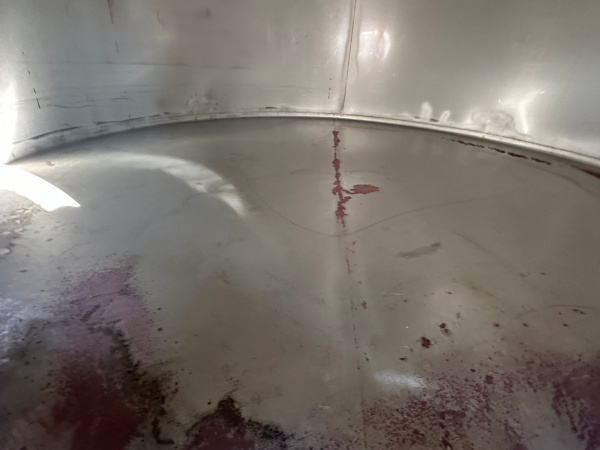

• The side tank wall measured 0.062” thick and the bottom dish measured 0.116” thick.
• Tank does not have a manufacturer data plate but is identical to our 5,000 gallon channel jacketed tanks made by ZERO manufacturing in Washington MO.
• Delivery quotes are available on request.

Specifications

• Condition: Used
• Gallons: 3,500
• Material: Stainless steel
