5,000 gallon stainless steel tank dimple jacked
[5KS63001]

•
•
•
•
•
•
•
•
•
•
•
•

Click image to enlarge

Quantity:

Add to Quote Ask a Question

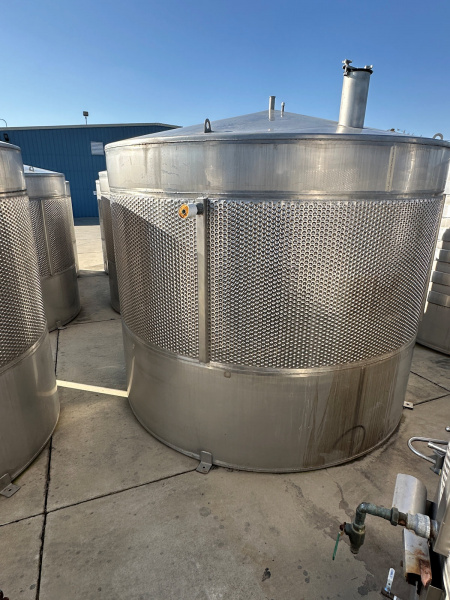

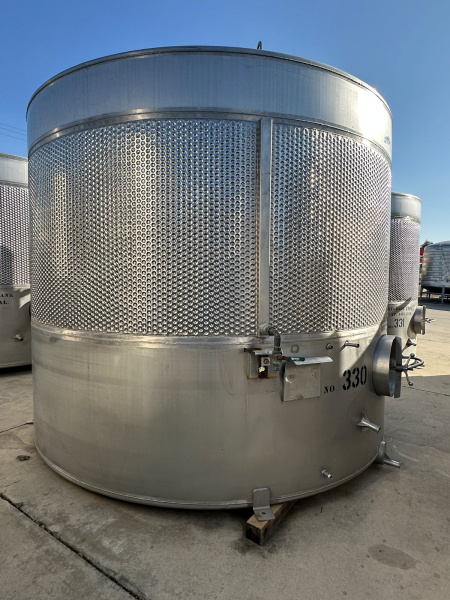

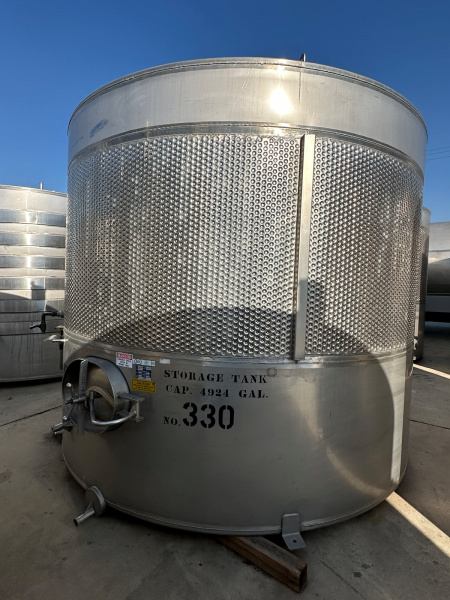

• 5,000 gallon stainless steel dimple jacketed tank.
• Measures 120” in diameter X 95” high on the straight side with a 12” high conical top.

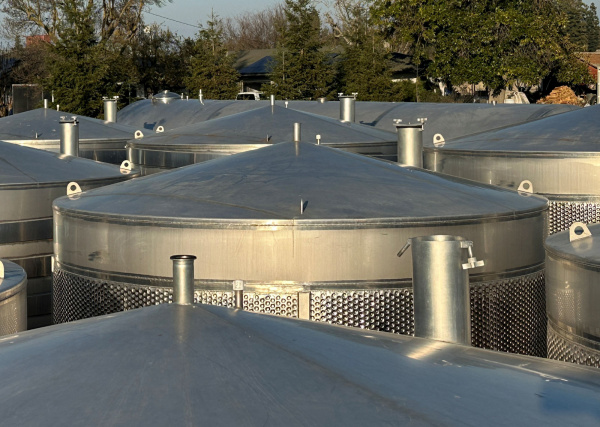

• Top of tank has one 1” threaded nipple; One 6” X 10” high stainless riser with a cap; One 3” top center sanitary vent pipe and four lifting eyes.

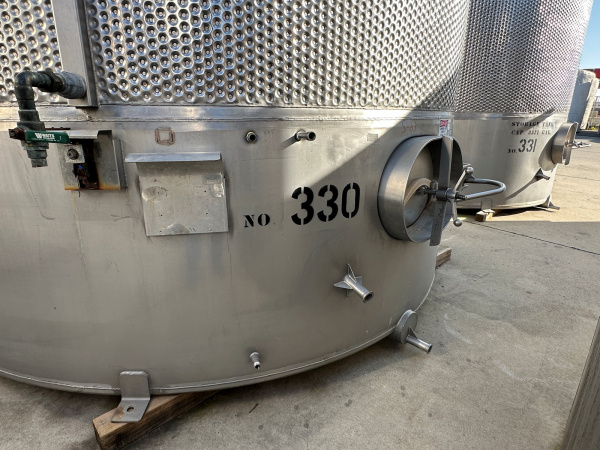

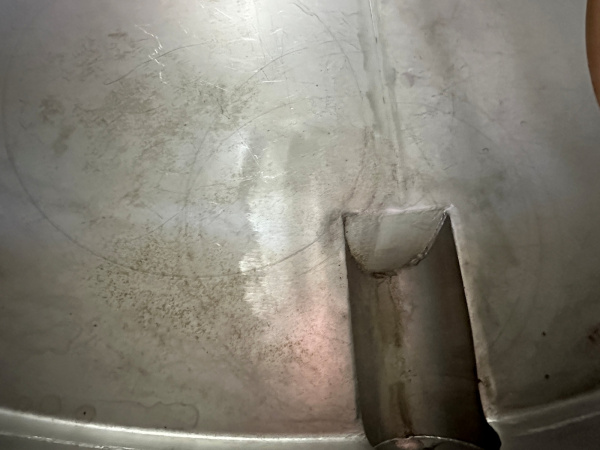

• There is a 16” X 20” side man way, one 2” sanitary bottom drain fitting, one 2” sanitary outlet 24” up from bottom of tank and two 1” threaded nipples near the man way.

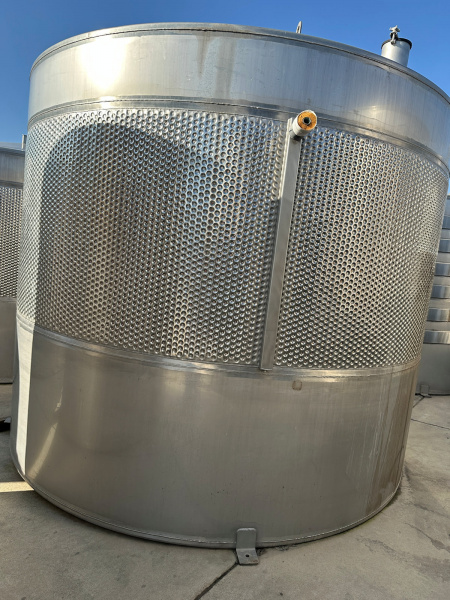

• The dimple jacket is 46” high providing approximately 120 square feet of heating/cooling surface.

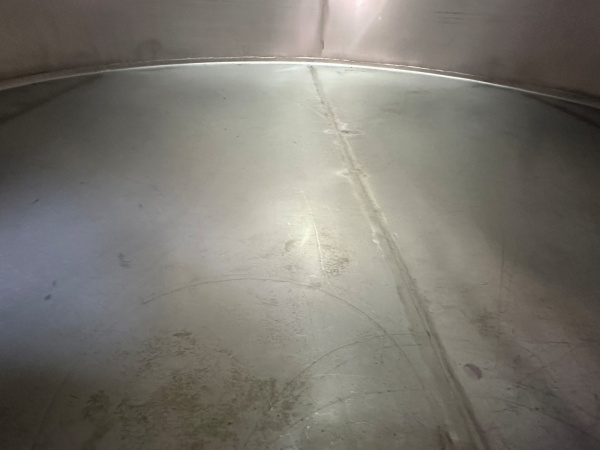

• The side tank wall measured 0.080” thick and the bottom dish measured 0.144” thick.

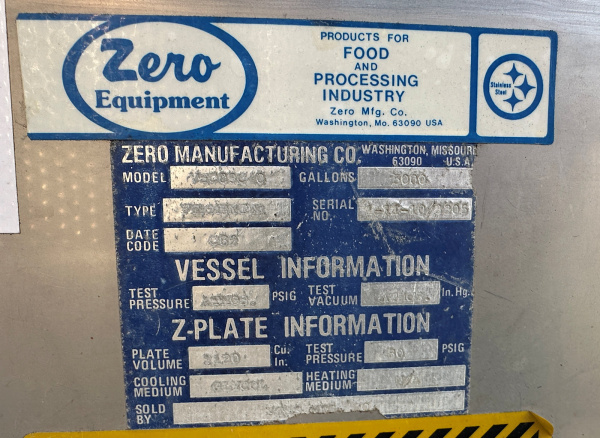

• Tank made by ZERO Manufacturing in Washington, MO with a Model: VSCO 3C40 and a MFG’s Serial Number: 1-11-10 3205.
• Delivery quotes to your location are available on request.

Specifications

• Condition: Used
• Gallons: 5,000
• Material: Stainless steel
