5,000 gallon stainless steel tank jacketed dish bottom
[5KS55001]

  • 5,000 gallon stainless steel tank jacketed dish bottom
  • 5KS5502
  • 5KS5503
  • 5KS5504
  • 5KS5505
  • 5KS5506
  • 5KS5507
  • 5KS5508
  • 5KS5509
  • 5KS5510
  • 5KS5511
Click image to enlarge
Quantity:
Ask a Question

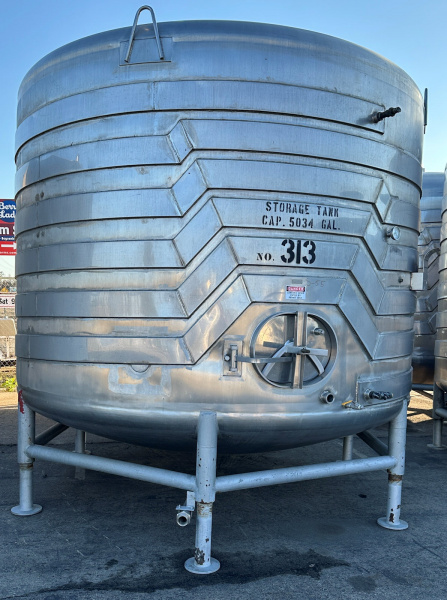

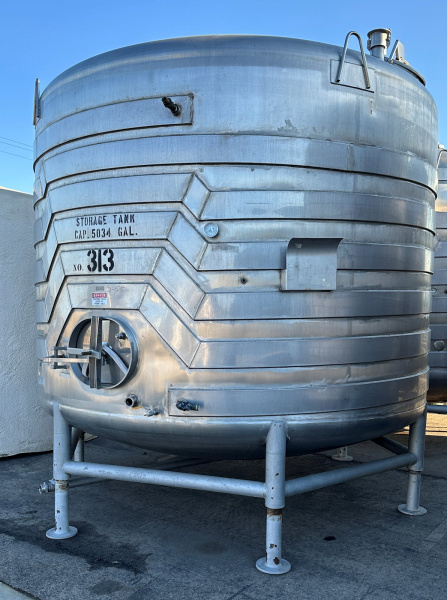

  • 5,000 gallon stainless steel tank.

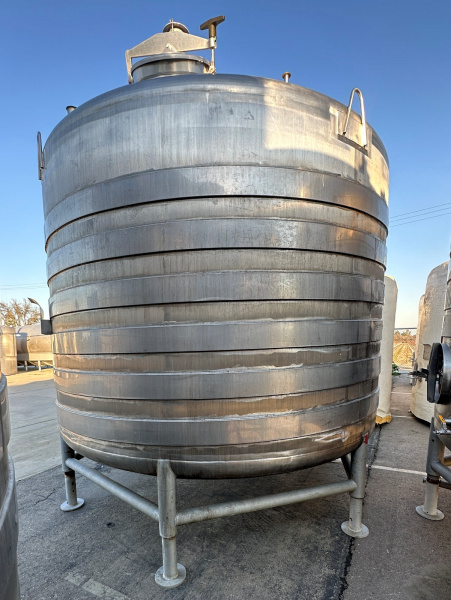

  • Measures 120” in diameter X 6’-9” High on the straight side with 20” deep dished heads.

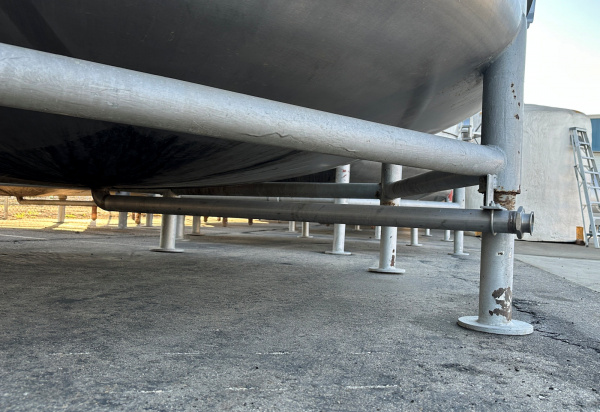

  • Tank is supported with six 4” steel pipe legs with threaded leveling adjusters.

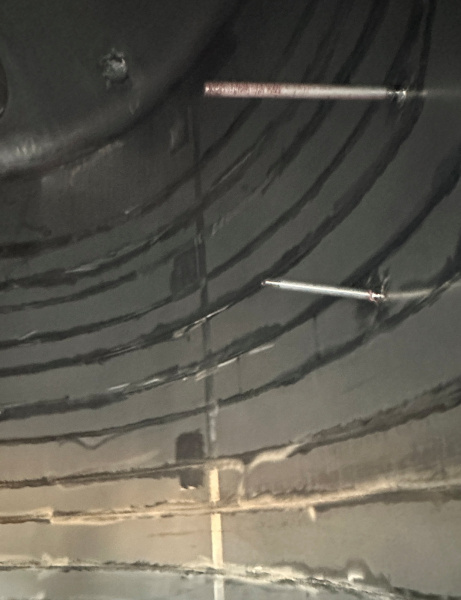

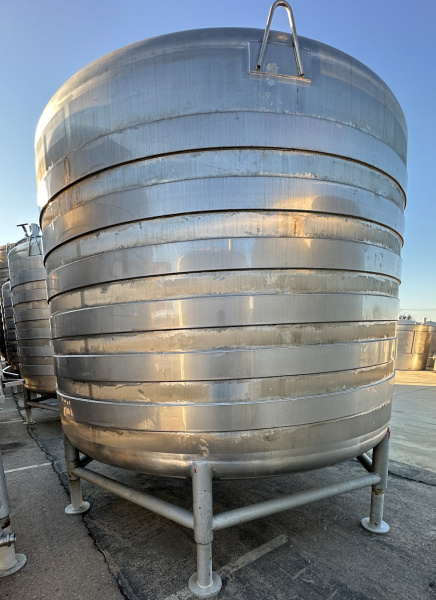

  • Has six rings of 6” wide stainless steel channel jacketing for cooling/heating.

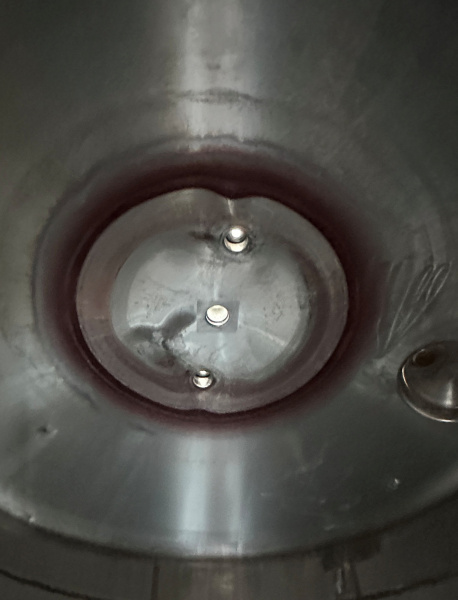

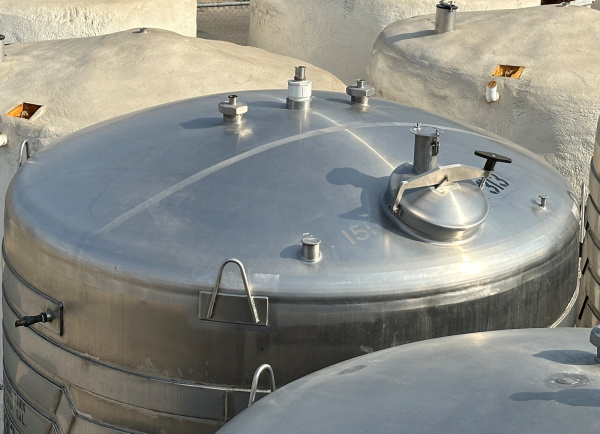

  • Top of tank has four lifting eyes; An 18” man way with a 6” riser vent pipe in the cover; Two 3” sanitary fittings and one 3” center threaded fitting.

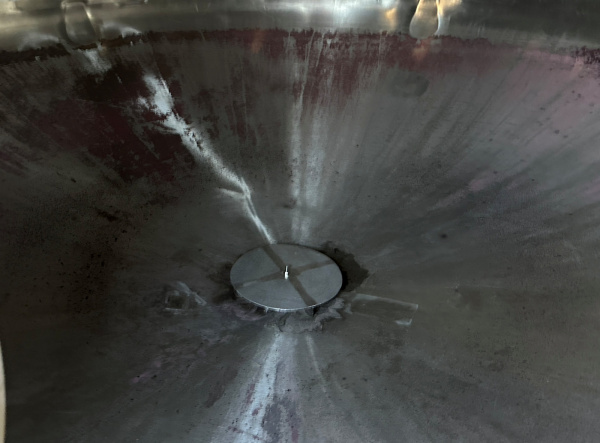

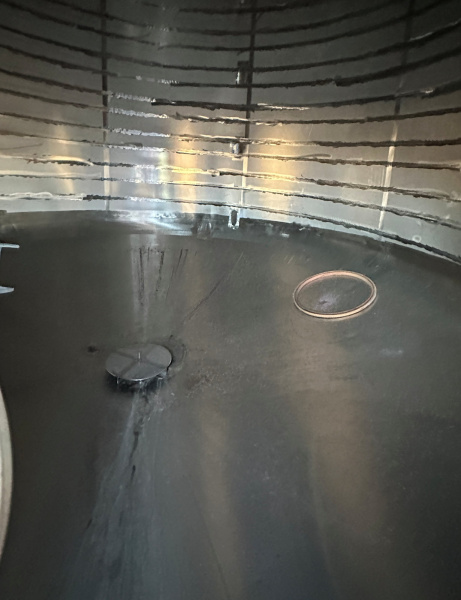

  • Bottom center of tank has one 2” stainless steel drain pipe.

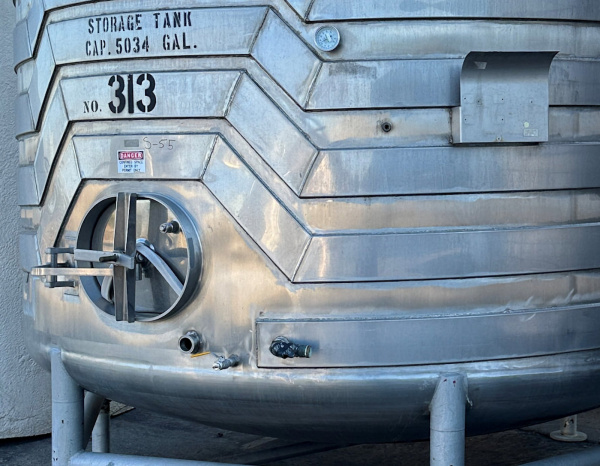

  • Side of tank has a 16” X 20” man way, one 2” sanitary fitting and one 1” threaded coupling.
  • Tank does not have a manufactures data plate.
  • Delivery quotes available on request.
Specifications
  • Condition: Used
  • Gallons: 5,000
  • Material: Stainless steel
