740 cubic foot air receiver
[5500LPG01]

  • 5500AIR01
  • 5500AIR02
  • 5500AIR03
  • 5500AIR04
  • 5500AIR05
  • 5500AIR06
  • 5500AIR07
  • 5500AIR08
Click image to enlarge
Quantity:
Ask a Question

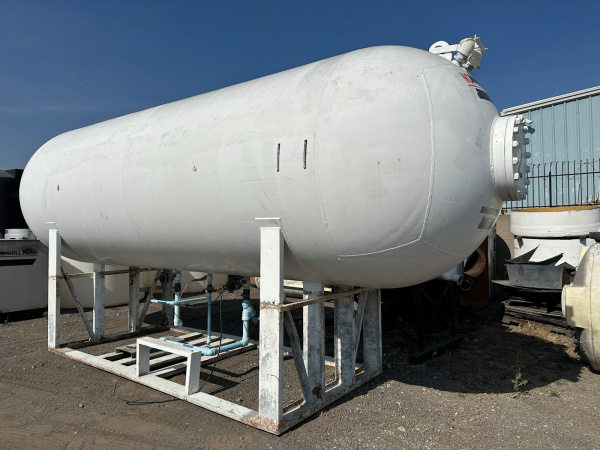

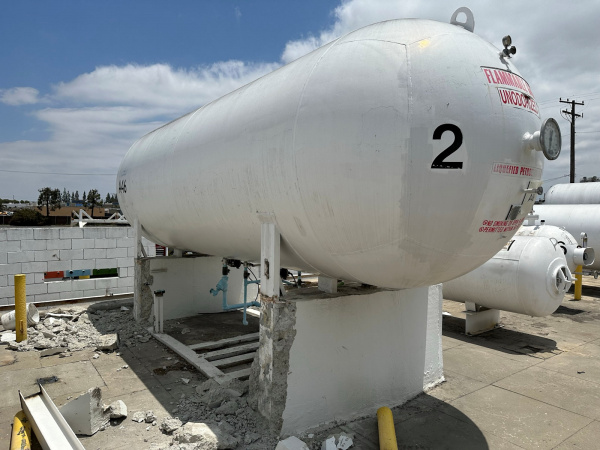

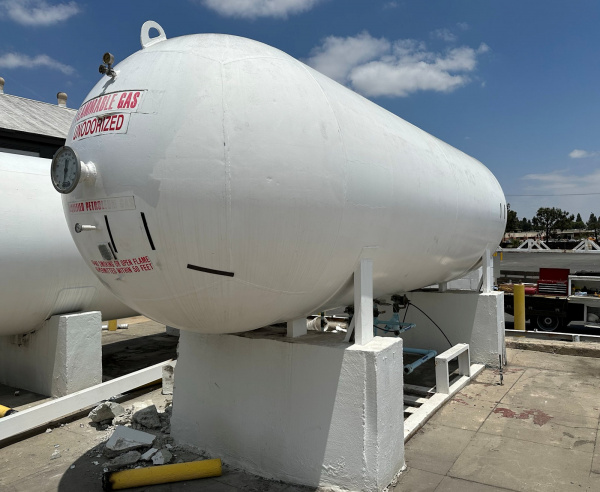

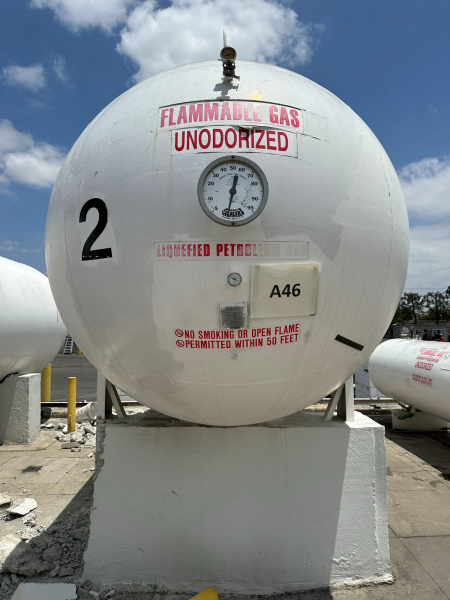

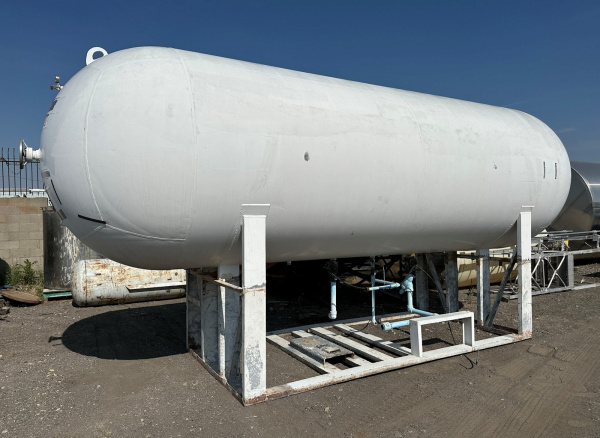

  • 5,500 gallon horizontal steel pressure tank rated to 185 PSI measures 82 ½” in diameter X 15’-9 ½” on the straight side with 42” deep dished heads.

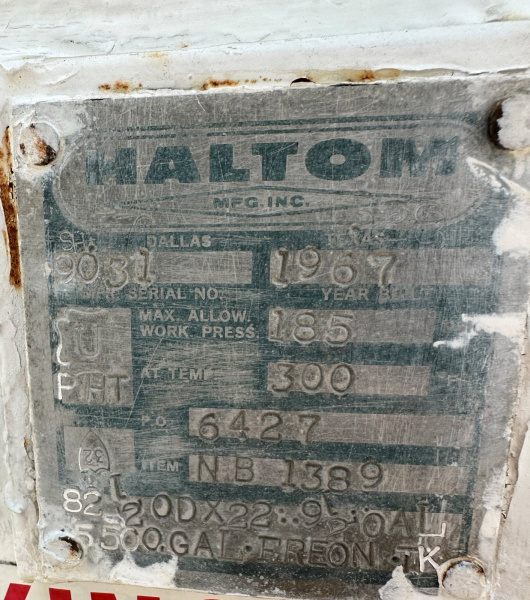

  • Was manufactured by Halton MFG, Inc. in Dallas, TX in 1967, Has a MFG’s S/N: 90311, A National Board NO: 1389, Is rated to 185 PSI @ 300 F.

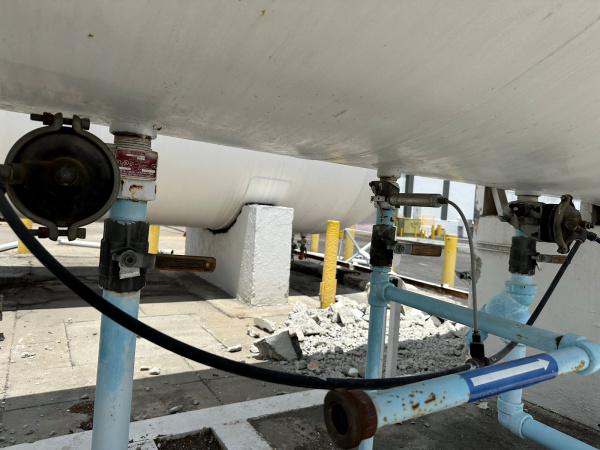

  • There are two 2” threaded fittings in one end of the tank near the top above the 18” Man way, two 2” and two 1 ¼” threaded fittings in the bottom side of the tank.

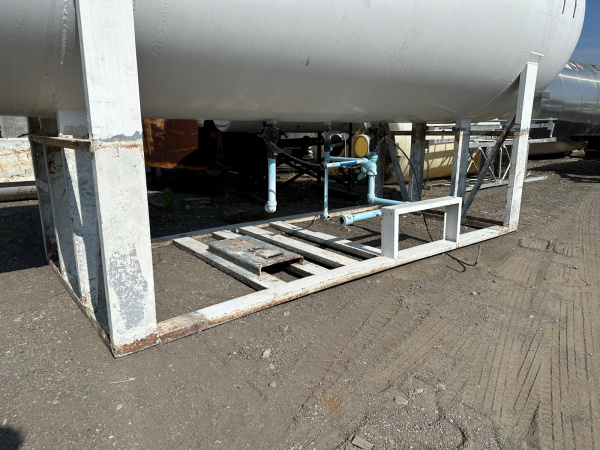

  • Is supported with a steel support structure. This structure was originally encased in concrete but it has been removed.
  • Tank shell is 0.570” THK and the tank heads are 0.328” THK.
  • Estimated weight is 13,000 LBS. Shipping height is 10’-6”.
  • Tank ships from Fontana, CA 92335.
  • Shipping quotes to your location are available upon request.
Specifications
  • Condition: Used
  • Gallons: 5500
  • Material: Mild steel
