Home > Used Tank Inventory > Carbon Steel Tanks > 8,000 gallon steel tank

8,000 gallon steel tank
[8KAPI620]

Click image to enlarge

Quantity:

Ask a Question

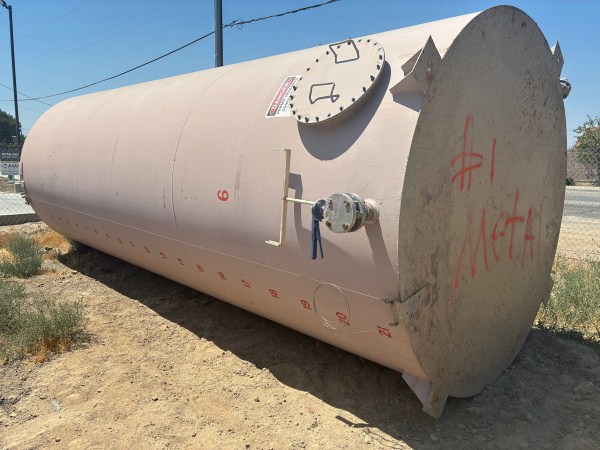

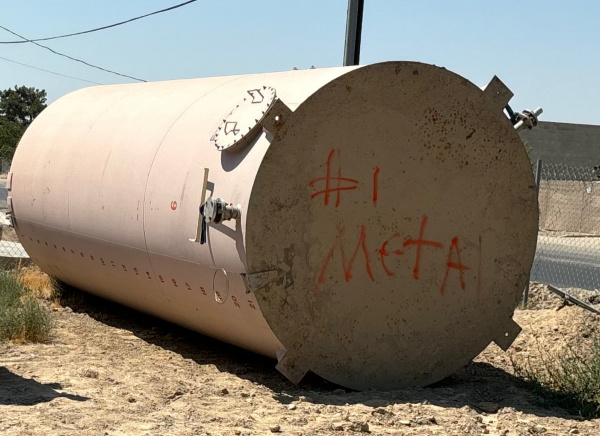

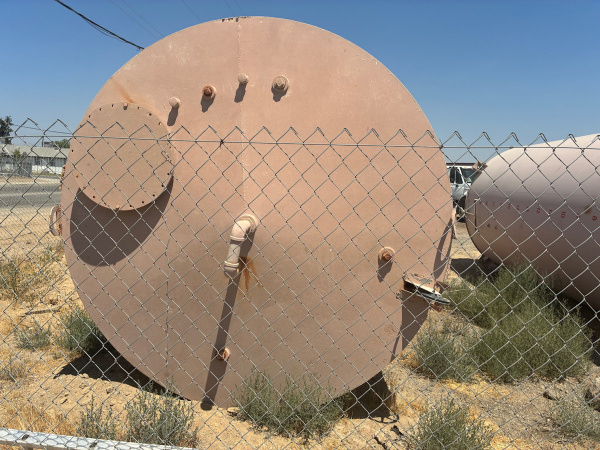

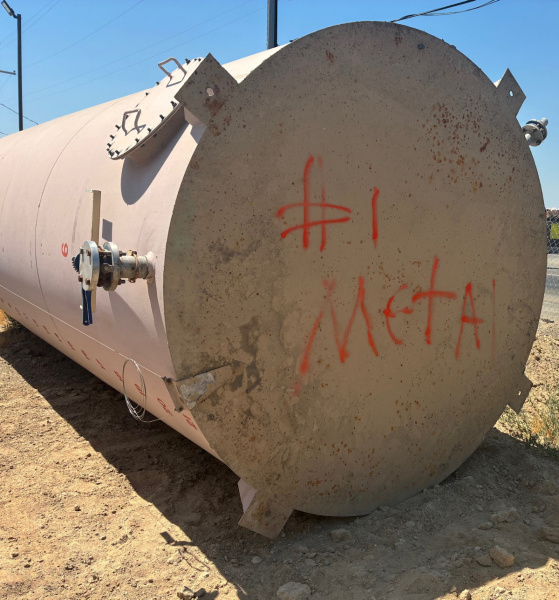

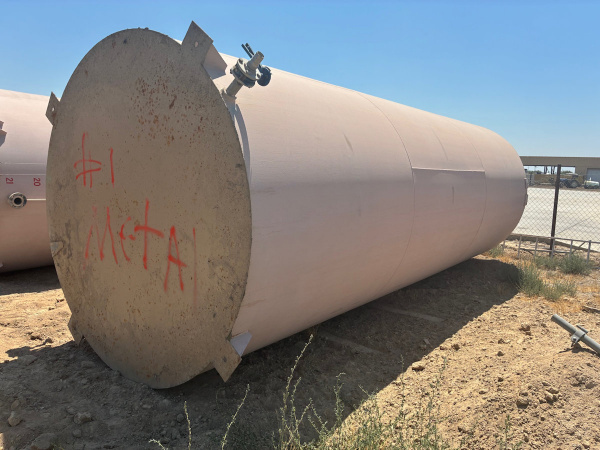

8,000 gallon steel tanks with dished bottoms & conical tops. Currently have four (4) in inventory.
Tanks measure 10’-0” in diameter X 12’-6” high on the straight side with a 22” deep dished bottoms and an 8” high conical tops.
Were manufactured by Long Industries in Buffalo, TX in 2014.
Tank dish bottom & top are 3/8” thick A-36 material and the tank shell is ¼” thick A-36 material.
All four tanks were manufactured and labeled to API 620 specifications; Are rated to .34 BAR or 5 PSI with a maximum operating temperature of 250˚ F.
Detailed manufacture drawings are available in the pdf file below.
Originally designed as polyurethane & polyol storage tanks.
Tanks are currently located and ship from New Iberia, LA.
Shipping quotes to your location are also available upon request.

Specifications

Condition: Never used
Gallons: 8,000
Material: Mild steel

Product Files

MFG's drawings
